The TDK-Lambda medical and ITE certified DTM300-D external power supply series offers a choice of class I or class II (no ground connection) inputs and meets the stringent Level VI DoE standards for efficiency and off-load power. The DTM300-D is certified to both the medical IEC 60601-1 and ITE IEC 60950-1 standards, making it suitable for a variety of power hungry medical, industrial, and test and measurement applications.

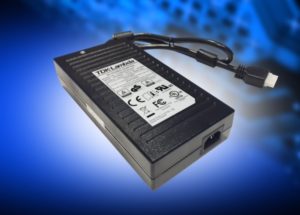

The convection-cooled DTM300-D sits in a rugged, vent-free enclosure, measuring 222 x 112 x 45-mm (LxWxH). AC is applied using the standard IEC 60320-C14 (3-prong) or 60320-C18 (2-prong) connector and dc provided through a ten-pin Molex Mini-Fit connector. Other connectors are available upon request. The adapters also feature over-voltage and over-current protection.

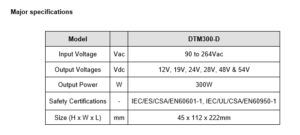

Accepting a 90 to 264-Vac input, the 300-W adapters are available with 12, 19, 24, 28, 48 and 54-V outputs and can operate in ambient temperatures ranging from -30 to +60°C (derating linearly to 50% load from 40 to 60°C). In addition to satisfying DoE Level VI requirements with an average efficiency of greater than 88%, the power supplies have an off-load power draw of less than 0.5 W.
The DTM300 has been certified to IEC/ES/CSA/EN60601-1, IEC/UL/CSA/EN60950-1 and carries the CE mark for the Low Voltage, EMC and RoHS2 Directives. All models meet EN60601-2, IEC60601-1-2 Ed4:2014, EN55011/EN55022 Class B, EN55024 Class B, FCC Part 15 Class B, FCC Part 18 Class B emissions and immunity standards. Input-to-output isolation is 4 kVac (2 x MoPP), with a touch current of
More information can be obtained at the TDK-Lambda Americas website, , or by calling 800-LAMBDA-4. Product availability for the DTM300-D series can be found via the TDK-Lambda’s distributor network (see “Check Distributor Stock to Buy”).
Major applications
Medical diagnostic, imaging and monitoring equipment
Industrial and test and measurement
Main features and benefits
• Compliant with DoE level VI requirements
• < 0.5 W off-load power
• Medical and ITE certifications
• Class I or Class II (no ground connection) inputs
About TDK Corporation
TDK Corporation is a leading electronics company based in Tokyo, Japan. It was established in 1935 to commercialize ferrite, a key material in electronic and magnetic products. TDK’s portfolio includes electronic components, modules and systems* marketed under the product brands TDK and EPCOS, power supplies, magnetic application products as well as energy devices, flash memory application devices, and others. TDK focuses on demanding markets in the areas of information and communication technology and consumer, automotive and industrial electronics. The company has a network of design and manufacturing locations and sales offices in Asia, Europe, and in North and South America. In fiscal 2016, TDK posted total sales of USD 10.2 billion and employed about 92,000 people worldwide.
* The product portfolio includes ceramic, aluminum electrolytic and film capacitors, ferrites, inductors, high-frequency components such as surface acoustic wave (SAW) filter products and modules, piezo and protection components, and sensors.
