Active-clamp flyback reference design covers 65-W fast charger apps

February 23, 2022 By Redding Traiger

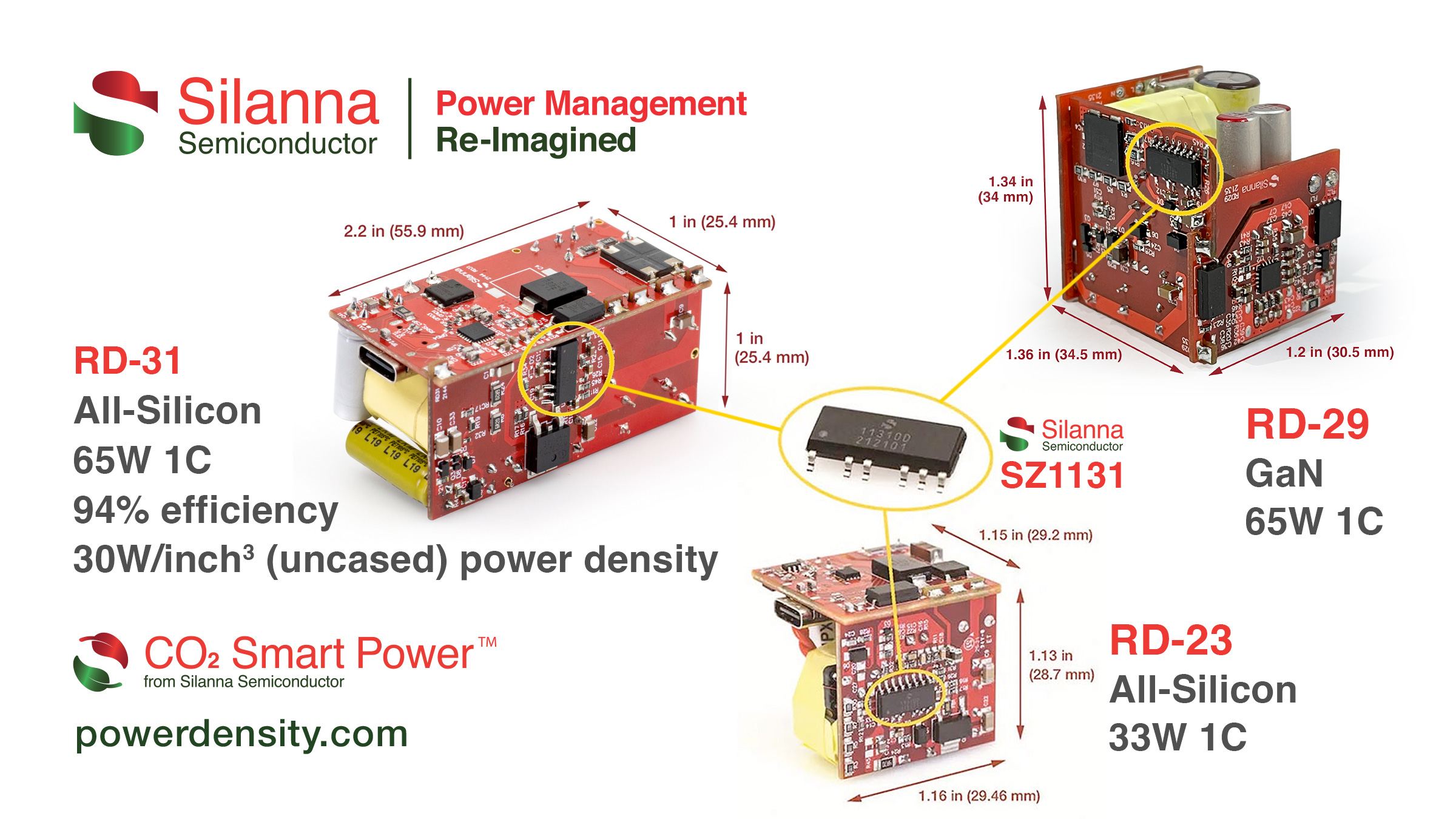

Silanna Semiconductor has launched a new active clamp flyback (ACF)-based reference design that simplifies and speeds the development of 65W 1C fast charger applications built using silicon power ICs. Featuring the company’s latest CO2 Smart Power ACF controller technology, the Silanna Semiconductor RD-31 provides a route to delivering a performance that matches or exceeds that of many commercially available 65W GaN-based chargers at a cost more readily associated with conventional silicon designs.

The RD-31 is the latest in a family of production-ready reference designs that provide everything needed to prototype and develop a fully functional charger with low operational and no-load/ standby power consumption and minimum component count, BOM cost, and size. This family includes all-silicon 33W and GaN-based 65W USB-PD reference designs.

As with the company’s existing 65W GaN and 33W silicon reference designs, Silanna’s new RD-31 is based on the ultra-high-efficiency SZ1131 ACF controller, which is rated for 65W and above 100W operation in universal input and PFC applications, respectively. This controller offers the industry’s highest level of integration by incorporating an adaptive digital PWM controller, ultra-high-voltage (UHV) active clamp FET, active clamp gate driver, and startup regulator into a single compact device.

Providing an (uncased) power density of 30W/inch3, the RD-31 operates with a peak efficiency of around 94% and has a no-load power consumption below 25mW. Efficiency is flat across the universal input voltage range (90 – 265Vac) and the reference design is fully production-ready as it exceeds conducted and radiated EMI requirements by more than 6dB. In benchmarking tests the RD-31 exceeded the efficiency of the best-in-class commercially available GaN-based power adapter by 0.5% and reduced no-load vampire power by as much as 44%.

The SZ1131 operates at frequencies up to 146kHz and provides the ease-of-design of a simple flyback controller with all the benefits of an ACF design. This includes recycling the leakage inductance energy of the flyback transformer and limiting the primary FET drain voltage spike during turn-off events. Employing Silanna Semiconductor’s OptiModeTM digital control architecture, the SZ1131 adjusts the device’s mode of operation on a cycle-by-cycle basis to maintain high efficiency, low EMI, fast dynamic load regulation, and other key power supply parameters in response to varying line voltage and load conditions.

Supplied in a 16-pin SOIC package, the SZ1131 offers protection against over-temperature, over-voltage, over-current, over-power, output short circuit, and transformer core saturation faults without the need for additional external components.
To further speed designs based on the RD-31 all PCB Gerber files and production files are available on request.

RD-31 Key Features include: 65W 1C high-power-density (30W/inch3 uncased) reference design; 94% peak efficiency; < 25mW system-level no-load power consumption; > 6dB conducted and radiated EMI margins; Flat efficiency across universal (90 – 265Vac) input voltage and load; Uses Silanna Semiconductor’s newest fully integrated ACF controller (SZ1131);  SZ1131 integrates ACF controller with UHV active clamp FET, active clamp driver, and start-up regulator; Up to 146kHz switching frequency operation; Ultra-low no-load power consumption; OptiMode cycle-by-cycle adaptive digital control;Self-tuning valley mode switching (VMS); Multi-mode operation (burst mode, QR, VMS); OTP, OVP, OCP, OPP, and Output Short Circuit Protections; CO2 Smart Power by Silanna Semiconductor;
