Breaking the 12-V bottleneck: the shift to 48-V power

The transition from 12-V to 48-V power distribution deals with efficiency, thermal management, and system architecture challenges in high-power applications. This article examines engineering concepts for transitioning from 12-V to 48-V power systems, with a particular emphasis on energy losses, modifications to server backplanes, and the implementation of zonal architectures.

Q: Why is the industry moving away from the 12-V standard for high-power applications?
A: The primary factor is the physical limitation of the current transmission at 12-V. As power demand (P) increases, maintaining a fixed low voltage (V) requires a linear increase in current (I), where P = VI. This increase leads to resistive losses (P_loss) in the distribution network that scale quadratically with current, as in I²R losses.

In 12-V systems, high-power loads draw high current, generating heat and voltage droop. However, quadrupling the bus voltage to 48 V reduces the current required to deliver the same power by a factor of 4. So, if the resistance of the conductor stays the same, this drop in current should cut resistive losses by a factor of 16 (4*4).

Such a move serves as a thermal management strategy, separating power delivery from the thermal constraints imposed by high-current 12-V interconnects.

Q: How does 48-V distribution impact thermal management and cabling?
A: Reducing current allows for optimization of the wiring harness, lowering both weight and cost. Figure 1 shows the practical implications in terms of power loss.

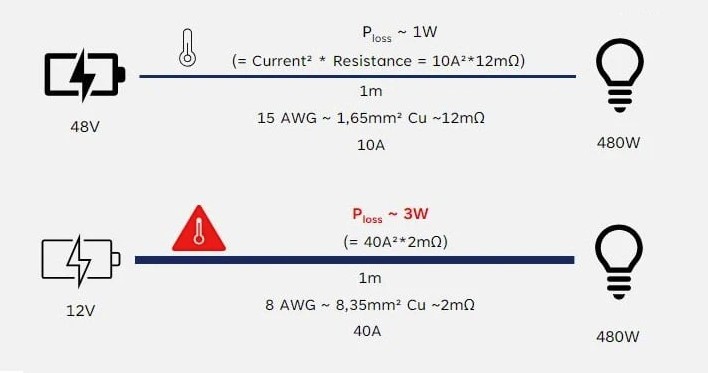

Figure 1. Power loss comparison of a 12-V and a 48-V distribution system. (Image: Allegro MicroSystems)

To deliver 480 W at 12 V, the system carries 40 A, requiring 8 AWG cabling to manage the 3 W of resistive loss per meter. On the other hand, at 48 V, the same load draws 10 A, allowing for the use of 15 AWG cabling and reducing heat dissipation by approximately two-thirds.

The industry selected 48 V (nominal) to balance efficiency and safety. 48 V remains below the 60 V dc safety limit defined by agencies such as UL and OSHA. As such, this classification avoids the isolation, shielding, and certification requirements mandated for high-voltage systems (>60 V).

Q: What are the architectural implications for data centers shifting to 48-V?
A: Data center rack power densities often exceed 25 kW, making legacy 12-V backplanes less effective due to the copper bus bars required to handle high currents. Consequently, a 48-V rack architecture addresses this density requirement.

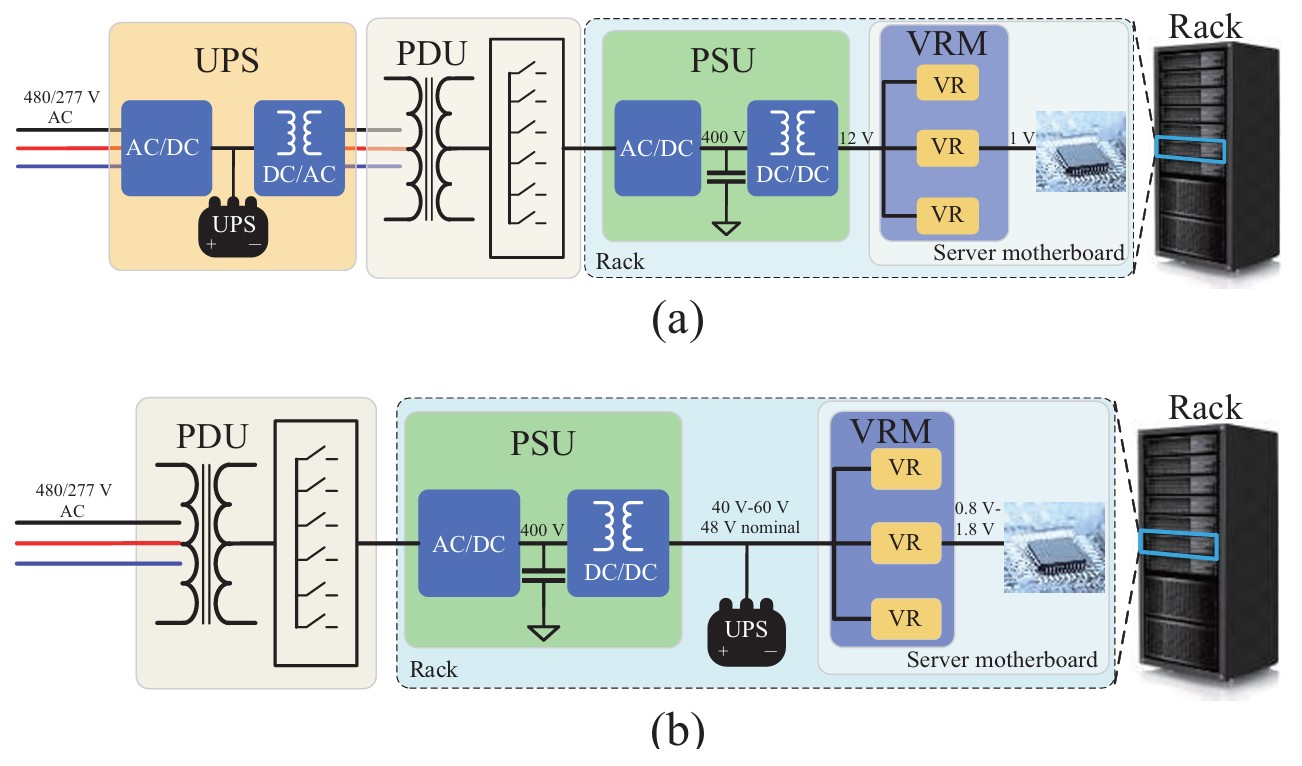

Figure 2. Comparison of legacy 12-V and emerging 48-V data center power architectures. (Image: IEEE)

Figure 2 illustrates this topological shift. In the legacy 12-V architecture (Figure 2a), the rack-level bus distributes high current, creating thermal challenges. With the use of the emerging 48-V architecture (Figure 2b), 48 V is distributed directly to the server blades, reducing the copper mass of the bus bars and minimizing distribution losses (I²R).

Q: What role does 48-V distribution play in modern automotive E/E architectures?
A: In automotive applications, 48-V bridges legacy 12-V electronics and high-voltage traction systems.

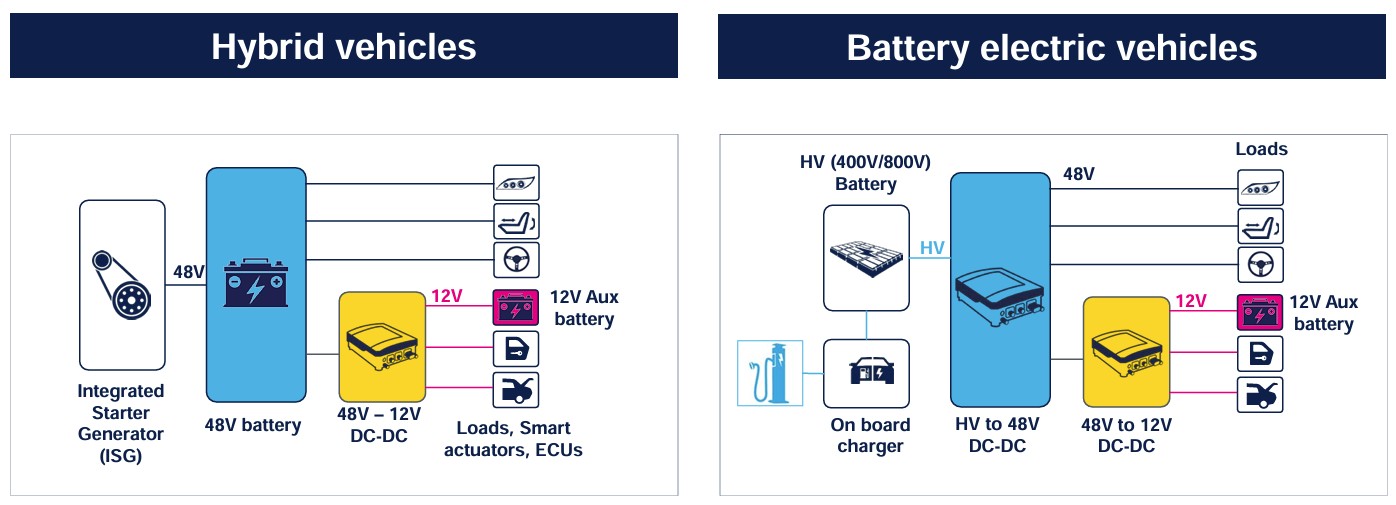

Figure 3. 48-V distribution in Hybrid and Battery Electric Vehicles. (Image: STMicroelectronics)

Figure 3 shows integration strategies for internal combustion and electric platforms.

Mild Hybrid Electric Vehicles: One of the key components, the Integrated Starter Generator, captures braking energy into a 48-V battery, powering high-load ancillaries (A/C compressors, active suspension, heaters) or boosting the engine. Also, a bidirectional dc-dc converter connects the 48-V and 12-V buses to support legacy systems.

Battery Electric Vehicles: The 48-V rail is derived from the High Voltage (HV) traction battery via an HV-to-48 V dc-dc converter. This separates high-power auxiliary loads from the 12-V network.

Q: How does 48 V enable Zonal Architecture in vehicles?
A: 48-V distribution supports Zonal Architecture, decentralizing power distribution. Instead of a central fuse box routing 12-V cables across the chassis, a primary 48-V power trunk runs to Zonal Control Modules (ZCMs) at the vehicle corners. For local voltage regulation in these zones, different architectures are evaluated to balance efficiency and complexity.

Figure 4 details these approaches. A distributed architecture employs multiple converters to create local rails, allowing for flexible voltage selection (e.g., 48 V to 3.3 V) and better thermal management across the PCB. Alternatively, a central 12-V rail approach can be simpler for legacy compatibility but requires a central converter to handle the entire 12-V load.

Figure 4. 48-V distribution in Hybrid and Battery Electric Vehicles. (Image: Texas Instruments)

High-power loads are normally powered locally by the ZCMs. For example, a ZCM delivering 1200 W draws 25 A from the 48-V trunk, compared to 100 A required by a 12-V line. This current reduction leads to harness weight reduction and supports automated harness manufacturing. Additionally, it is worth mentioning that such reductions simplify vehicle assembly.

Summary

The 48-V system solves the problems of 12-V systems by greatly lowering energy loss and allowing for lighter, more efficient wiring options. Also, adopting 48 V enables advanced topologies, such as Zonal Architecture in vehicles and high-density rack designs in data centers, thereby optimizing thermal management and system complexity.
