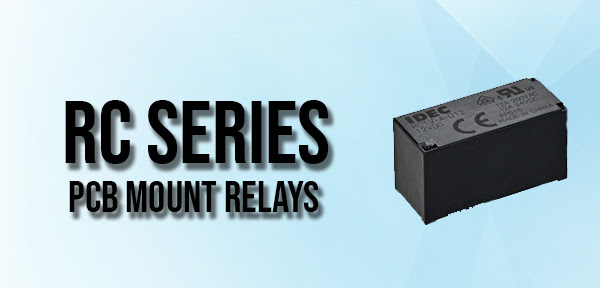

RC relays are PCB relays that provide quality switching contacts within a compact package. IDEC’s RC relays meet the rigorous requirements of an industrial control panel in a small package. The RC relays are small yet maintain high contact ratings with long electrical life. Available in SPST-NO, SPDT, and DPDT contact arrangements with 8A,12A 16A rated models. The RC PCB relay is designed as a flux-resistant type RTII capable of being automatically soldered without allowing solder flux to enter the relay case. The RC Series can be used in both industrial controls and electronics applications.
Key features:
- High capacity of 16A, SPST-NO, SPDT and 8A DPDT contacts.
- Compact, low-profile relay with a width of 12.8mm x height of 16.5mm (average dimensions, RC2V type)
- Operating Voltages: 5VDC, 12VDC, 24VDC, 48VDC and 110VDC
- Long electrical and mechanical life
- Dust and solder flux protected, Flux-resistant type (RTII)
- UL, c-UL, VDE, CQC certified products
