Miniature dc-dc converters target industrial apps with 1-W output

Flex Power Modules introduces new families of miniature DC-DC converters for industrial applications: the PUA-A, PUC-B and PUB-M. The new devices are all isolating converters providing output power of up to 1W, with no minimum load required.

Efficiency is typically 84% (PUA-A), 80% (PUC-B) and 81% (PUB-M) – all at full load. Input-to-output isolation voltage is 2000V (PUA-A), 6000V (PUC-B) and 3000V (PUB-M).

The new converters deliver the reliability and ruggedness needed for the harsh environments found in industrial applications, and have mean time between failures (MTBF) rated at 17.9 million hours (Mh) for the PUB-M, 15Mh for the PUC-B and 13.1Mh for the PUA-A.

The devices are safety compliant to EN/UL 62368-1, and Flex Power Modules is an ISO 9001/14001 certified supplier.

The converters have a wide operating temperature range of -40°C to 100°C (PUA-A and PUC-B) and -40°C to 110°C (PUB-M). They include output short-circuit protection, to avoid damage.

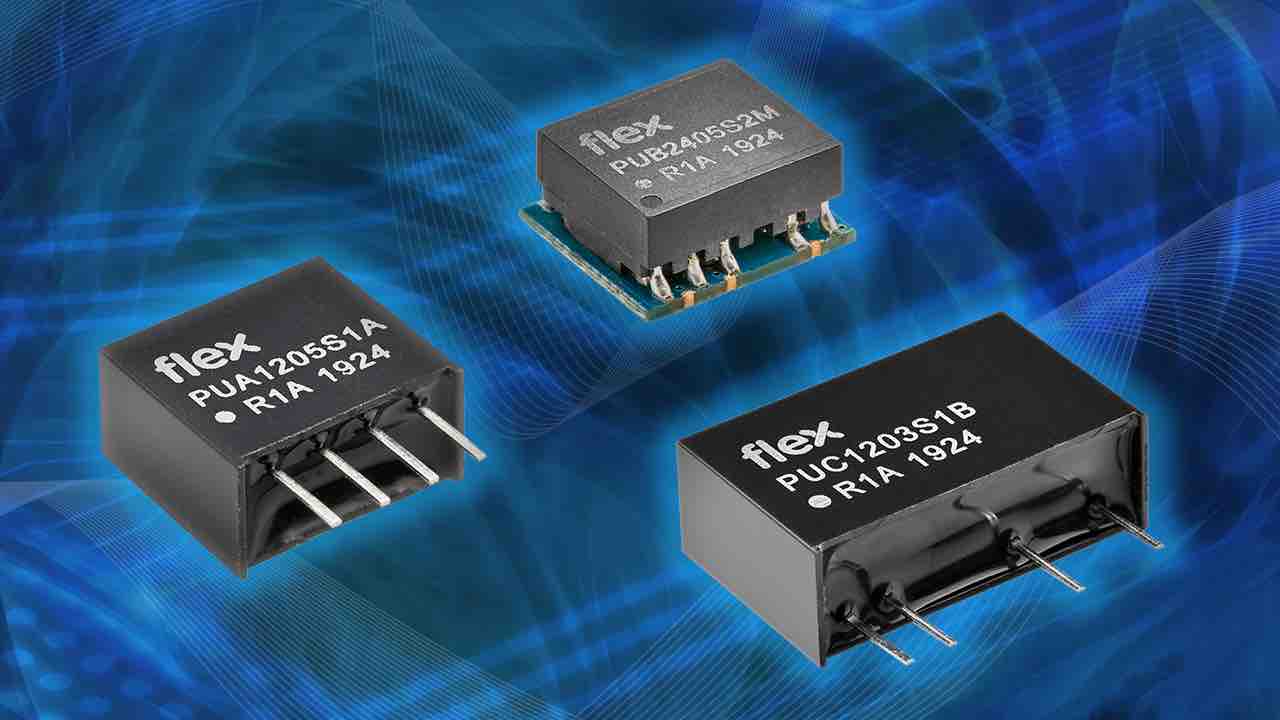

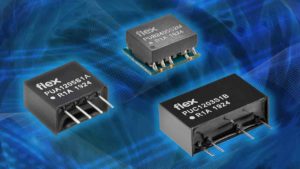

The devices are all provided in industry-standard packages. The PUA-A is a SIP4 device, measuring 11.5 x 6 x 10mm (0.45 x 0.23 x 0.36in). The PUC-B is housed in a SIP7 package, measuring 19.7 x 7.1 x 11.5mm (0.78 x 0.28 x 0.45in), while the PUB-M is a surface-mount device (SMD) with dimensions of 12.75 x 11.2 x 6.6mm (0.5 x 0.441 x 0.26in) for the single-output variant, and 15.25 x 11.2 x 6.6mm (0.6 x 0.441 x 0.26in) for the dual-output version.

For more information, visit: https://flex.com/cross-industry-technologies/power
