MnZn-based ferrite features low loss at high frequencies for GaN-based power supplies

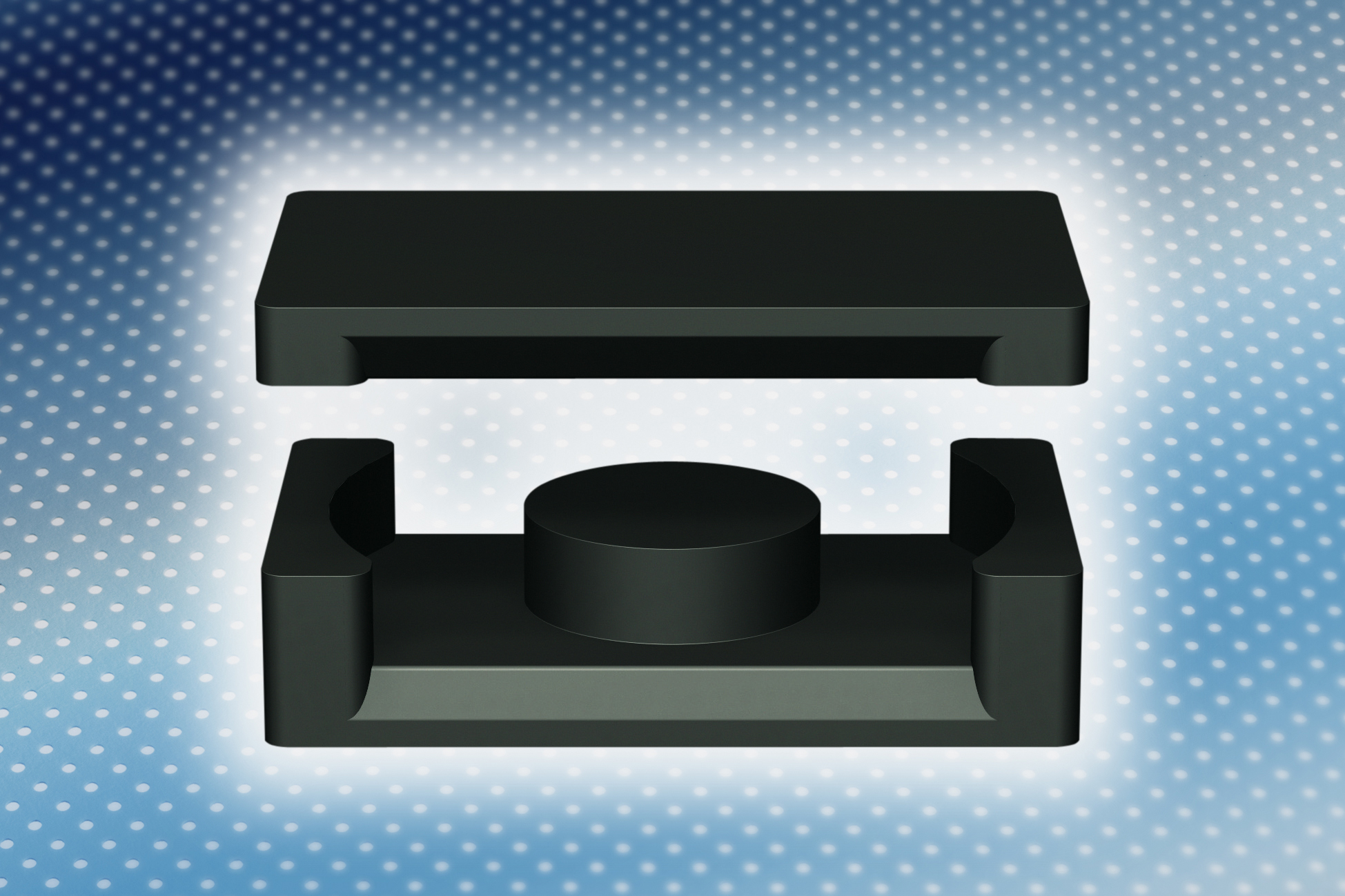

TDK Corporation presents the new MnZn-based PC200 ferrite materiall, which is characterized by low losses at high frequencies. It was developed specifically for power supplies and frequency converters that operate with fast-switching power semiconductors on a GaN basis.

The new material is optimized for a frequency range from 700 kHz to 4 MHz. Its maximum transmissible power is reached at a switching frequency of 1.8 MHz to 2 MHz and an operating temperature of 100 °C. The ferrite material’s Curie temperature is in excess of 250 °C. The PC200 ferrite material is particularly suitable for transformers based on ring core or planar topologies.

The new material is available in ER, EFD, ELP, EQ, I and RM cores. The outstanding properties of this material will enable considerably more compact power supplies to be designed in future. At the same time, its efficiency is improved due to the low losses of the ferrite material, which is why the use of PC200 contributes to significantly greater energy savings.

Main applications include transformers in power supplies and converters that operate with fast-switching power semiconductors on a GaN basis. The main features and benefits include low power dissipation in the frequency range from 700 kHz to 4 MHz, and maximum transmissible power at 1.8 MHz to 2 MHz.

More information: TDK Corporation, St.-Martin-Strasse 53, 81669 Munich, GERMANY: +49 89 54020 0; info@epcos.com
