What is gate charge, and why does it matter for switching speed?

Gate charge (Qg) represents the total electrical charge required to turn on a power semiconductor device, such as MOSFETs and IGBTs. The switching speed is directly affected by this important parameter. The lower the gate charge, the faster the device can go from on to off. This article examines the physical origins of gate charge, breaks down its key components, and shows how these components directly control switching speed in power electronics applications.

Q: What is gate charge, and where does it come from?
A: To understand why gate charge affects switching speed, let us examine the MOSFET’s internal structure. As shown in Figure 1, the gate terminal is electrically isolated from the channel by a thin insulating layer, forming a capacitor. This creates internal capacitances (Cgs and Cgd) that must be charged and discharged during switching.

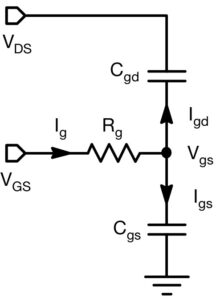

Figure 1. MOSFET capacitive model showing internal capacitances Cgs and Cgd. (Image: Vishay)

Turning a MOSFET on and off involves charging and discharging these internal capacitances, where gate charge represents the sum of charge required for these capacitances. According to basic capacitor principles, charging time depends on the capacitance value and the available current. More charge required means longer charging time and slower switching.

This charge storage requirement creates a limit on switching speed. Gate charge enables quantitative prediction of switching performance, allowing engineers to size gate drivers and calculate switching losses. Understanding gate charge bridges device physics and practical circuit design makes it essential for high-frequency applications.

Q: What are the components that make up the total gate charge?
A: Total gate charge breaks down into three distinct components, each serving a specific role in switching.

Gate-to-Source Charge (Qgs) represents the charge required to raise gate-to-source voltage from zero to threshold voltage (Vth). This is often the smallest component, which is established when the transistor begins conducting. The charging process is straightforward with a linear voltage rise, making it the fastest switching phase.

Gate-to-Drain Charge (Qgd), known as the “Miller charge,” is the most important component affecting switching speed and losses. This charge overcomes the Miller effect during the drain voltage transition. The Miller effect occurs when gate-to-drain capacitance (Cgd) creates feedback during switching.

This plateau duration directly determines the switching time and switching loss period. During the Miller Plateau, the gate driver must sustain current delivery while gate voltage remains constant, making this the most challenging phase for gate driver design.

Gate-to-Drain Charge beyond Miller Plateau provides additional charge for full channel enhancement after drain voltage transition completes, minimizing on-resistance (RDS(on)) for efficient conduction.

Figure 2 demonstrates how gate charge characteristics vary with operating conditions. Miller Plateau duration extends with higher drain voltages (VDS), while increased current levels (ID) shift plateau voltage upward.

Figure 2. Gate charge curve showing how the Miller Plateau (middle) determines switching speed. (Image: Infineon Technologies)

Real-world gate charge varies considerably from datasheet specifications. Higher drain voltages create longer Miller Plateaus requiring more Qgd, while higher currents shift plateau voltage upward. These variations mean that worst-case operating conditions must determine gate driver sizing requirements.

Q: How does gate charge control switching speed?
A: The fundamental relationship establishing the connection between gate charge and switching speed follows the equation Ig = Qg/tsw (gate current equals gate charge divided by switching time). This demonstrates that switching speed is limited by the time required to supply or remove stored charge, making gate driver current capability the primary determinant of switching performance.

The turn-on process occurs in three phases. Phase 1 charges Qgs, with gate voltage rising linearly from zero to threshold voltage over turn-on delay time (td(on)). Drain current begins flowing, but drain voltage remains high. This proceeds quickly due to the small charge quantity.

Phase 2 charges Qgd during the Miller Plateau, the most critical phase, determining switching speed and losses. Drain voltage begins falling, creating Miller effect feedback that plateaus gate voltage despite continued gate current. This rise time (tr) is directly proportional to Qgd and inversely proportional to gate current. This constitutes the switching loss period because both high voltage and current exist across the device simultaneously.

Phase 3 provides full enhancement after the drain voltage reaches the minimum value, allowing the gate voltage to rise to the final drive level.

Turn-off follows the reverse sequence, with the gate driver sinking current to remove stored charge. The Miller Plateau reappears during the drain voltage rise, and the fall time (tf) follows the same charge-to-current relationship.

Figure 3(a) illustrates the theoretical switching sequence, showing where gate charge consumption occurs during the Miller Plateau. Figure 3(b) provides experimental evidence demonstrating how gate capacitance variations directly affect switching timing, with measurements showing slower transitions as gate capacitance increases from 0.1 nF to 100 nF.

Figure 3. (a) MOSFET switching waveforms showing Miller plateau, (b) experimental switching times with varying gate capacitance. (Image: ResearchGate)

Laboratory measurements confirm theoretical predictions, with capacitance variations creating proportional switching speed changes. The 100 ns/div timebase demonstrates realistic switching speeds for power applications. Multiple parameter variations show consistent charge-to-speed correlation.

Summary

Gate charge fundamentally determines MOSFET switching speed, where the Miller charge component dominates switching performance. For power electronics engineers, understanding this relationship is essential for gate driver sizing, switching loss calculations, and frequency optimization. Lower gate charge devices enable faster switching and higher efficiency, but the Miller Plateau duration during switching transitions remains an important factor.
