1.7 kV SiC power module optimized for high-reliability industrial apps

ROHM announced the development of a 1700V/250A rated SiC power module that provides the industry’s highest level of reliability optimized for inverter and converter applications such as outdoor power generation systems and industrial high power supplies.

In recent years, due to its energy-saving benefits, SiC is seeing greater adoption in 1200V applications such as electric vehicles and industrial equipment. The trend towards higher power density has resulted in higher system voltages, increasing the demand for 1700V products. However, it has been difficult to achieve the desired reliability, and so IGBTs are typically preferred for 1700V applications.

In response, ROHM was able to reach high reliability at 1700V, while maintaining the energy-saving performance of its popular 1200V SiC products, achieving the world’s first successful commercialization of 1700V rated SiC power modules.

The BSM250D17P2E004 utilizes new construction methods and coating materials to prevent dielectric breakdown and suppress increases in leakage current. As a result, high reliability is achieved that prevents dielectric breakdown even after 1,000 hours under high temperature high humidity bias testing (HV-H3TRB). This ensures high voltage (1700V) operation even under severe temperature and humidity environments.

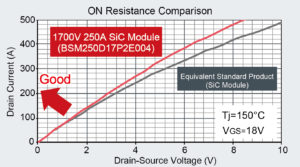

By incorporating ROHM’s proven SiC MOSFETs and SiC Schottky barrier diodes into the same module and optimizing the internal structure make it possible to reduce ON resistance by 10% over other SiC products in its class. This translates to improved energy savings and reduced heat dissipation in any application.

This latest 1700V module introduces a new packaging method and coating materials to protect the chip, which allows achieving the first successful commercialization of a 1700V SiC Module, passing the HV-H3TRB reliability tests.
