Of the several technologies behind smart cities such as data, infrastructure, IoT devices, it is smart lighting technology that has emerged as the leading smart city application. Energy and operations savings make the business case for smart lighting obvious. Street lighting can consume as much as 40 percent of a city’s energy budget — smart lighting offers the potential to cut the energy and operations costs of street lighting by up to 50 percent.
Now Researchers of Karlsruhe Institute of Technology (KIT) have developed a novel type of LED street light of increased efficiency. Compared to conventional LEDs, power consumption may be reduced by up to 20%. This will also decrease costs and CO2 emission. Conventional high-power diodes are replaced by a special array of LEDs. This enhances efficiency, increases service life and safety, and produces a better light.
Parallel connection of a large number of LEDs is difficult, as failure of a single diode will cause failure of the overall system or section. According to Michael Heidinger of KIT’s Light Technology Institute, the alternative of connecting LEDs in series is also associated with drawbacks, because the voltage required increases with the number of diodes used. As the legally permissible contact voltage is limited to 120 volts, only up to 40 LEDs have been connected in series so far.

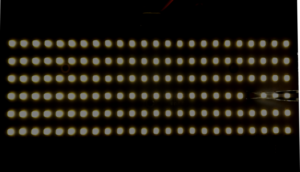

Heidinger has now invented an interconnection method that compensates aging and failures of individual LEDs. This method allows to install a large number of LEDs – 144 in the prototype – on a single board and to operate the array safely. This new switching concept works with far smaller voltages. “Voltage of the prototype was 20 volts,” Heidinger says.
Moreover, the array produces less heat. “In case of a few LEDs, power loss is highly concentrated,” Heidinger says, “and has to be distributed with a high effort.” Insufficient heat distribution causes local overheating that massively affects the service life of the lamp. Heat distribution or reduction requires a high expenditure and, hence, is expensive. Such costs are reduced when using Heidin-ger’s new LED array.
In addition, luminous characteristics are more comfortable for the human eye. “Many small LEDs are perceived as panel radiators from a certain distance. Their glaring effect is smaller than that of high-performance LEDs that are perceived as spot-like light sources.” Moreover, low-power LEDs are cheaper than high-performance LEDs. Hence, the new system can be produced and offered at the same prize, although more light-emitting diodes are required. Last but not least, change to the new lamp technology is uncomplicated and inexpensive. “The LED module can be installed simply into existing lighting systems,” Heidinger says.
In the future, cities and municipalities might profit from reduced power consumption of the novel type of LED. At many places, the old, conventional, and power-consuming illumination is being replaced by LED technology at the moment. According to the city administration of Karlsruhe, illumination of this medium-sized city with 300,000 inhabitants requires about 60,000 lamps (one tenth of which are LEDs). In 2015, their power consumption totaled about 12,000 megawatt hours. Annual power and maintenance costs of EUR 3 million result. In Berlin, energy costs for public electric illumination (the capital also has gas lamps) amounted to about EUR 14 million in 2015. Power consumption totaled 75,000 megawatt hours. In Germany’s second largest city Hamburg, energy consumption for illumination in 2014 totaled about 35,000 megawatt hours causing costs in the amount of EUR 7 million.
Industry partners are already developing first products based on KIT’s technology. “For the first time, we can now construct glare-free lamps of high efficiency, which meet highest safety standards,” Klaus Müller, Managing Director of Gratz Luminance, says. “Before the end of this year, we will make available our lamp to customers for testing purposes.”
Read more at Phys.org
